TRENDNET USB Bluetooth Adapter Dongle Class 2 TBW-101UB

Home > Networking >

TRENDNET USB Bluetooth Adapter Dongle Class 2 TBW-101UB - Retail

Our Price: $25.00

Availability: Usually Ships in 24 to 48 Hours
Product Code: NET-WLS-TNBT

Description

Class II Bluetooth Operations
Compliant with USB 1.1, Bluetooth 1.1 and 1.2 Standards
Uses 2.4GHz ISM frequency band with Gaussian Frequency Shift keying (GFSK) standard
Supports both Asynchronous Connectionless Link (ACL ) and Synchronous Connection Oriented (SCO)
High-Speed wireless data transmission, up to 723Kbps Data Throughput in ACL mode, and up to 64 Kbps in SCO mode
Compatible with Windows 98SE/ME/2000/XP/2003 Server, Mac OS X 10.2.x or above
Built-in 128-bit encryption for secured data communications
Supports up to 7 Slave Devices

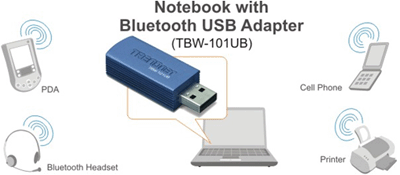

Enable computers to connect Bluetooth enabled devices such as printers, Headset, Audio/Video, Basic Image, PDAs, and mobile phones
Communicates wirelessly up to 25 meters (82 ft.) in limited condition
Trouble free Plug & Play Installation
2-Year Warranty


Specifications
Hardware
Adapter Standards	USB 1.1, Bluetooth 1.1 and 1.2
Antenna	2dBi
Link Mode	ACL and SCO
TX Output	ClassII Operation
Supported OS	Windows 98SE/ME/2000/XP/2003 Server, Mac OS X 10.2.8 or above
Cable Length	15cm(6in.)
LED Indicator	Power
Operating Voltage	5V USB Power
Power Consumption	80mA (Max.)
Temperature	Operation: 0�~ 55�C (32�F~132�F) Storage: -20�~ 55�C (-4�F~132�F)
Humidity	70% (Max)
Dimensions	57 x 18 x 11 mm (2.24 x 0.71 x 0.43in.)
Weights	11 g (0.4 oz.)
Certification	CE, FCC
Wireless
Frequency	2.4 ~ 2.4835 GHz
Module Technique	Gaussian Frequency Shift Keying ( GFSK)
Output Power	0dBm (typical)
Receiving Sensitivity	- 82dBm ( typical )
Data Rate	Up to 723Kbps in ACL mode; up to 64Kbps in SCO mode
Date Range	Up to 25m (82 ft.) depends on the environment
