| Compatible with the following operating systems: |
|

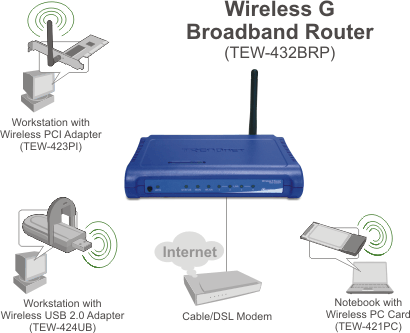

 The
54Mbps Wireless G Router offers a complete wireless solution that
allows you to share files, an Internet connection, or network resource
while protecting your network using enhanced security features. Simply
plug your workstations and your broadband modem into the Wireless G
router, and configure your broadband connection using its built-in Web
Interface. Use the VirtualServer feature to configure any
workstation as a Web Server or FTP server easily, allowing users to
view files from the Internet. You can also protect your Wireless LAN
using64/128-bit WEP encryption or industry standard WPA-PSK with TKIP
or AES algorithms. Increase security by enabling MAC, IP, or Protocol
Filtering as well as setting Firewall Rules to limit Internet Access or
block malicious intruders from accessing your network. *Note: Coverage and Speed performance might vary depending on the network environment.
 |
| Standards | - Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), ANSI/IEEE 802.3 Auto Negotiation
- Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps)
| | WAN | 1 x 10/100Mbps Auto-MDIX Port (Internet) | | LAN | 4 x 10/100Mbps Auto-MDIX Port | | Connection Type | Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP | | Supported Network Protocols | TCP/IP, NAT, PPPoE/PPTP/L2TP, HTTP, DHCP server/client | | LED Indicators | System, WAN, WLAN, LAN, WDS | | Dimension (L x W x H) | 155 x 110 x 30 mm (6 x 4.3 x 1.2 inches) | | Weight | 226g (8 oz.) | | Temperature | - Operation: 0°~ 40°C (32°F~ 104°F)
- Storage:-10°~ 70°C (14°F~ 158°F)
| | Humidity | Max. 95% (Non-Condensing) | | Power Adapter | 7.5V DC, 1A External Power Adapter | | Certification | FCC &CE | | Wireless | | Frequency | 2.412 ~ 2.484GHz (Industrial Scientific Medical Band) | | Module Technique | - 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps),DBPSK (1Mbps)
- 802.11g: OFDM
| | Antenna | 1 x 2dBi External Detachable Dipole Antenna (Female Reverse SMA Connector) | | Media Access Protocol | CSMA/CA with ACK | | Security | 64/128-bit WEP (HEX/ASCII),802.1x WPA/WPA2, WPA-PSK/WPA2-PSK, MAC Address Filter, Protocol Filter, Domain Filter | | Transmit Power | 802.11b: 15 ± 2dBm; 802.11g: 14 ± 2dBm | | Data Rate | - 802.11b:11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
- 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps,12Mbps, 9Mbps and 6Mbps
| | Receiving Sensitivity | - 11Mbps8% PER @ -82 dBm (typical)
- 54Mbps 10% PER @ -65 dBm (typical)
| | Channels | 11 Channels (US), 13 Channels (EU) |
 |
